Spray Scrubber Tower
Wet spray washing tower for exhaust gas pretreatment, paint mist removal, acid-base gas washing and odor-control system protection.
Spray Scrubber Tower for pollution-control projects
Standard spray scrubber tower for paint mist, acid / alkaline exhaust, odor and smoke pretreatment before UV, RCO or dust-control equipment.
A spray scrubber tower is discussed when exhaust gas needs washing, cooling, paint-mist removal or acid-base pretreatment before downstream UV, activated carbon, RCO or dust-control equipment.
The standard scrubber document lists common air volume from 2000 to 50000 m3/h, overall purification efficiency around 85-95%, air velocity about 0.6-1.5 m/s and equipment resistance around 300-800 Pa.
Equipment data from supplied material
This table keeps the equipment values, routes and material options stated in the supplied product material. Selection notes and related-product links elsewhere on the page are website guidance, not added hard specifications.
Supplied standard spray scrubber tower material. Final sizing still depends on site conditions, but the values in this table are kept to the supplied material.
| Item | Specification / selection note |
|---|---|
| Typical air volume | 2000-50000 m3/h; non-standard size can be discussed |
| Overall purification efficiency | 85-95% listed in the document |
| Air velocity | 0.6-1.5 m/s |
| Operating resistance | 300-800 Pa |
| Temperature limit | <=60 deg C |
| Material options | Q235 carbon steel coating, 304 stainless steel, FRP or PP |
| Common models | Diameter 1000 / 1200 / 1500 / 2000 / 2500 mm for 2000 / 3000 / 5000 / 10000 / 15000 m3/h examples |
Configured around the actual treatment route
The treatment route is confirmed from the supplied equipment material, then sized by air volume, water volume, pollutant type, material requirement and site layout.
Project-specific wastewater, exhaust gas or pollution control applications
Air volume, water volume, pollutant type, temperature, humidity, corrosion and inlet condition affect configuration.
Treatment body, fans, ducts, pumps, control cabinet, safety protection and maintenance access are reviewed by route.
Hard parameters are kept to supplied product material; final sizing is confirmed by project condition.
Selection notes kept separate from source parameters
Huisheng reviews the treatment route, handled medium, capacity, material, outlet target and auxiliary systems before confirming a configuration. Documented values remain in the technical data table, while project pairing and monitoring-interface notes are treated as selection guidance.
Hard values are kept to the supplied product material. Project-specific sizing is treated as selection work, not as a new published parameter.
Exhaust gas, dust, odor, flue gas polishing or wastewater condition should be confirmed before choosing the treatment route.
Air volume, water volume, pollutant load and outlet requirement determine final equipment sizing.
Q235, 304 stainless steel, FRP, PP or anti-corrosion options are selected according to the documented material scope and site condition.
Fans, ducts, pumps, control cabinets, safety protection and monitoring interfaces are discussed as configuration notes.
Parameters and scope stated in supplied material
The items below summarize capacity, material, process route, efficiency or equipment-scope information from the supplied product material. Extra project advice stays in selection notes instead of becoming a published hard parameter.
2000-50000 m3/h
Spray tower air-volume range, including non-standard sizing discussion.
85-95% purification
Overall purification efficiency listed in the spray scrubber material.
300-800 Pa
Operating resistance range used for fan and duct selection.
Q235 / 304 / FRP / PP
Material options for normal, light-corrosion and strong acid or alkali conditions.
PP Pall ring packing
Packing layer that increases gas-liquid contact area in the tower.
Mist eliminator
Upper demisting section that reduces water carryover to downstream equipment.
How the equipment fits into a treatment route
Treatment equipment is configured by process route, pollutant type, air or water volume, material requirement and installation condition. Monitoring or sampling interfaces are considered only when the project needs them.

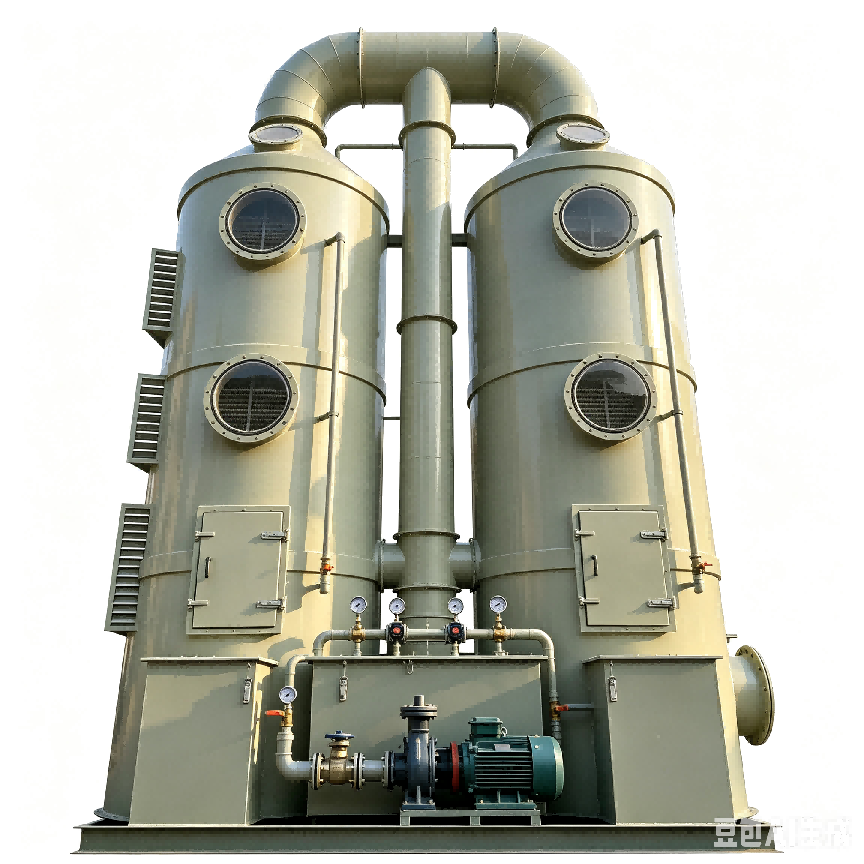

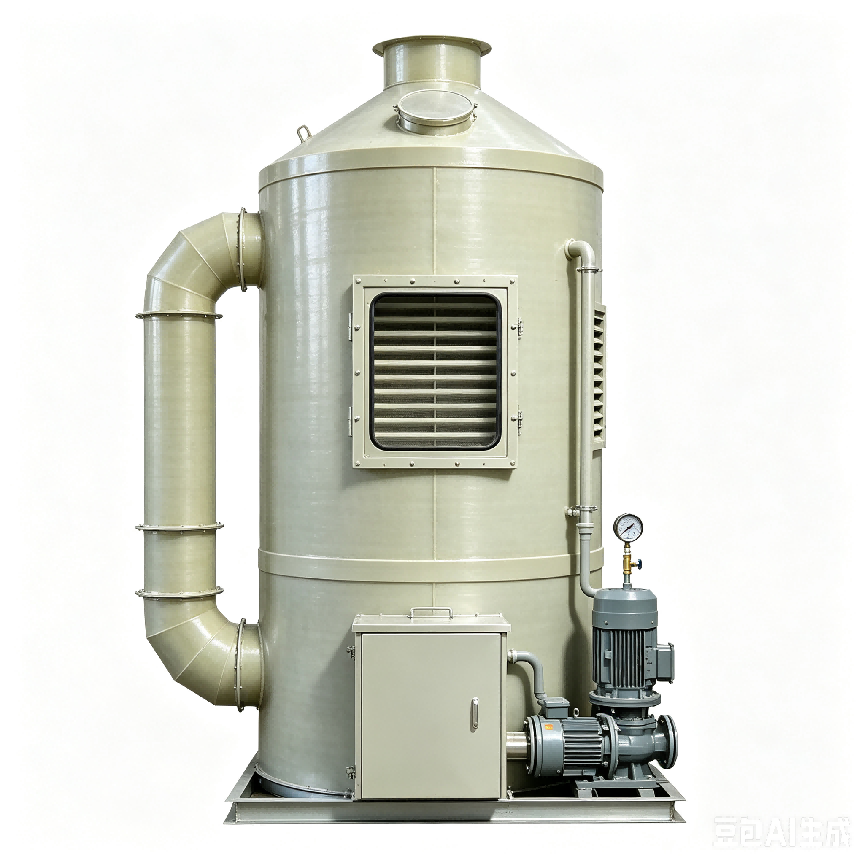

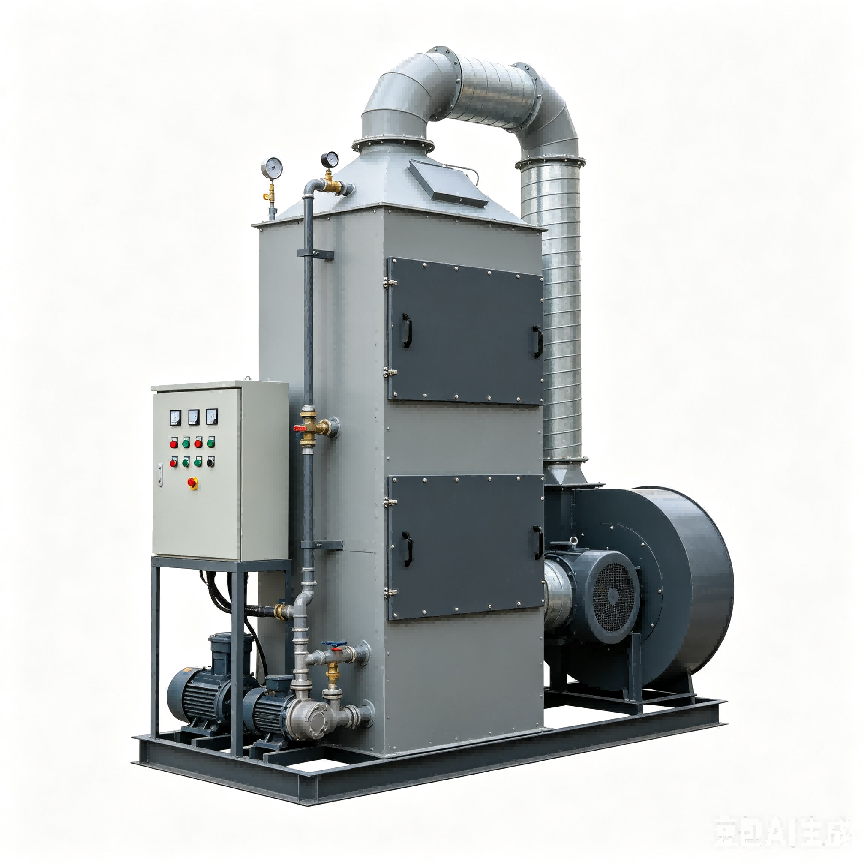

Tower body and gas inlet / outlet
The sample access point determines whether filtration, heating, flow control or preservation is required.
PP Pall ring packing
This part is configured according to the selected model and actual site conditions.
Anti-clogging spray nozzles
This part is configured according to the selected model and actual site conditions.
Mist eliminator
This part is configured according to the selected model and actual site conditions.
Circulating water tank and pump
This part is configured according to the selected model and actual site conditions.
Inspection port, water makeup and drain valves
This part is configured according to the selected model and actual site conditions.
