Integrated Wastewater Treatment Equipment
Integrated wastewater treatment equipment for 5-100 m3/d decentralized domestic wastewater, small medical wastewater and low-strength industrial wastewater projects.
Integrated Wastewater Treatment Equipment for pollution-control projects

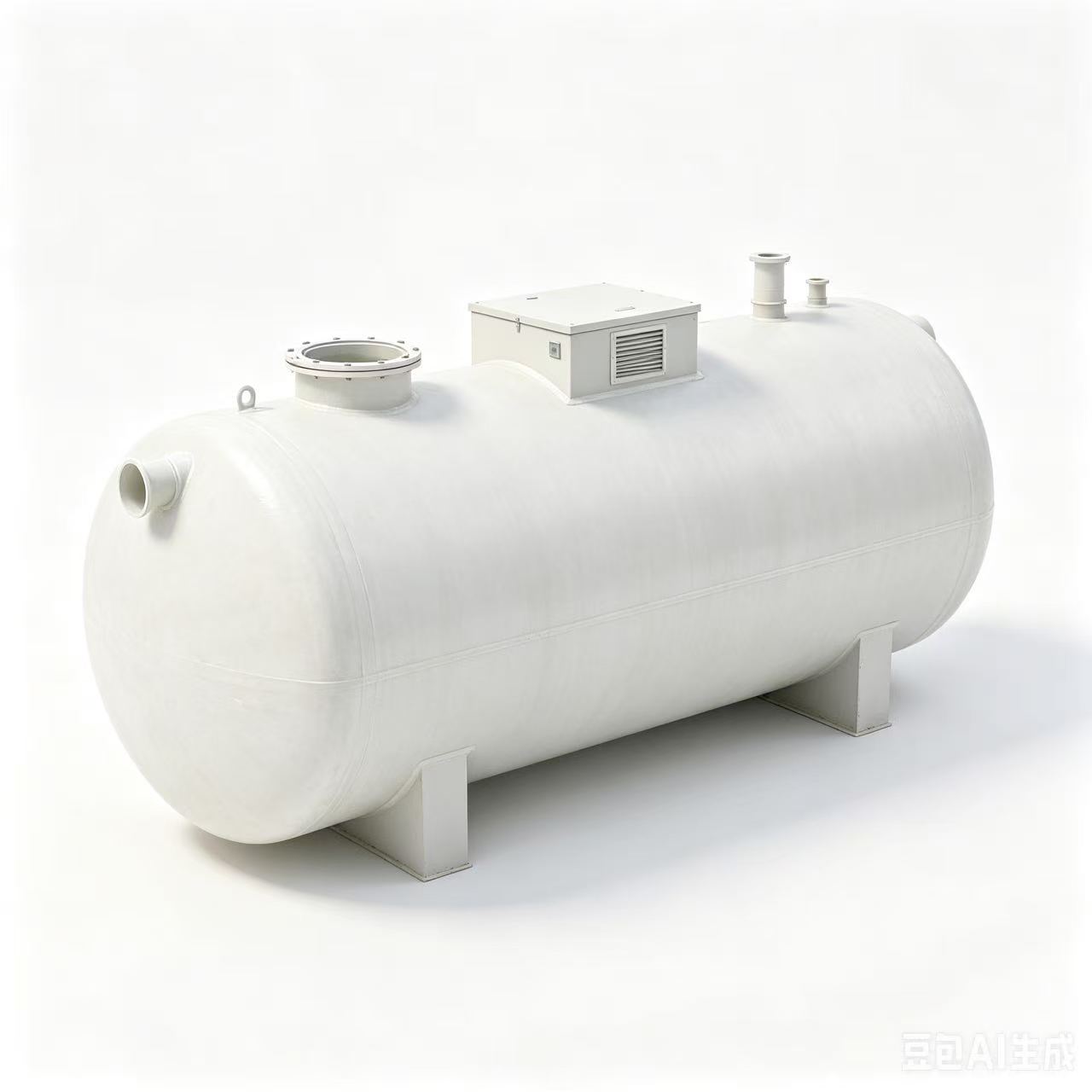

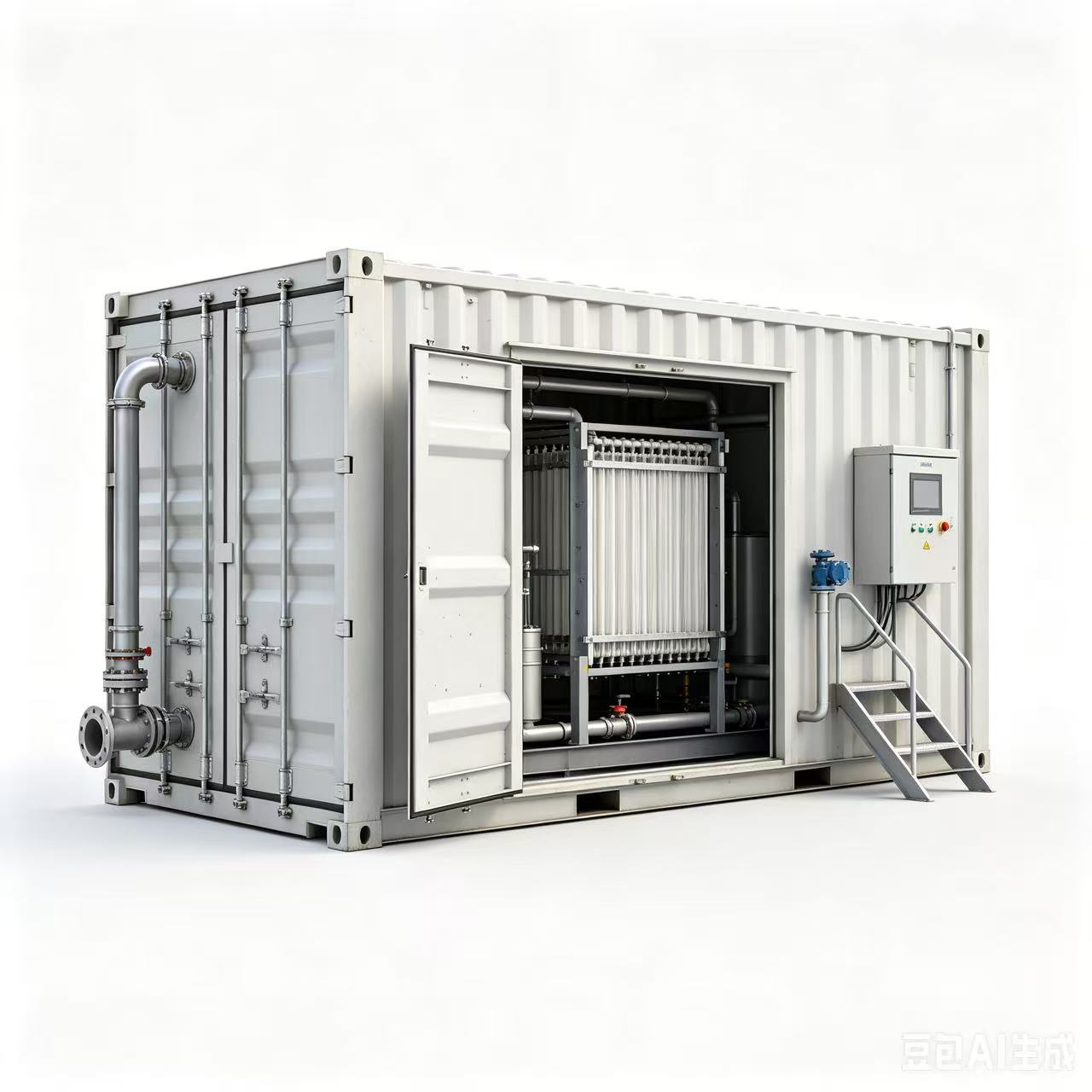

Supplementary integrated wastewater treatment equipment, including buried FRP AO systems, containerized MBR systems and small vertical treatment units from 5 to 100 m3/d.
Integrated wastewater treatment equipment is discussed when a project needs a compact treatment package for distributed domestic wastewater, small medical wastewater, service area wastewater or low-strength industrial wastewater together with online water-quality monitoring.
The new wastewater treatment document lists standard capacities of 5, 10, 20, 50 and 100 m3/d. It describes buried FRP AO systems, containerized MBR systems and small vertical integrated units. The process route is equalization tank, anaerobic, anoxic, aerobic aeration, sedimentation and disinfection; the MBR version adds hollow-fiber membrane modules in the aerobic section.
Equipment data from supplied material
This table keeps the equipment values, routes and material options stated in the supplied product material. Selection notes and related-product links elsewhere on the page are website guidance, not added hard specifications.
Supplied integrated wastewater treatment equipment 5-100 m3/d material. Final sizing still depends on site conditions, but the values in this table are kept to the supplied material.
| Item | Specification / selection note |
|---|---|
| Capacity range | 5 / 10 / 20 / 50 / 100 m3/d; customization can be discussed |
| Main routes | Standard biochemical route and MBR integrated high-configuration route |
| Discharge reference | Class 1A discharge standard (GB18918-2002) is listed in the document |
| Process flow | Equalization tank -> anaerobic -> anoxic -> aerobic aeration -> sedimentation -> disinfection |
| MBR option | Aerobic section can include hollow-fiber MBR membrane modules |
| Material options | FRP, Q235 carbon steel anti-corrosion and 304 stainless steel |
| COD removal | 85-93% listed in the document |
| BOD5 removal | 88-95% listed in the document |
| Ammonia nitrogen removal | 80-90% listed in the document |
| Total phosphorus removal | Above 75% listed in the document |
Configured around the actual treatment route
The treatment route is confirmed from the supplied equipment material, then sized by air volume, water volume, pollutant type, material requirement and site layout.
Project-specific wastewater, exhaust gas or pollution control applications
Air volume, water volume, pollutant type, temperature, humidity, corrosion and inlet condition affect configuration.
Treatment body, fans, ducts, pumps, control cabinet, safety protection and maintenance access are reviewed by route.
Hard parameters are kept to supplied product material; final sizing is confirmed by project condition.
Selection notes kept separate from source parameters
Huisheng reviews the treatment route, handled medium, capacity, material, outlet target and auxiliary systems before confirming a configuration. Documented values remain in the technical data table, while project pairing and monitoring-interface notes are treated as selection guidance.
Hard values are kept to the supplied product material. Project-specific sizing is treated as selection work, not as a new published parameter.
Exhaust gas, dust, odor, flue gas polishing or wastewater condition should be confirmed before choosing the treatment route.
Air volume, water volume, pollutant load and outlet requirement determine final equipment sizing.
Q235, 304 stainless steel, FRP, PP or anti-corrosion options are selected according to the documented material scope and site condition.
Fans, ducts, pumps, control cabinets, safety protection and monitoring interfaces are discussed as configuration notes.
Parameters and scope stated in supplied material
The items below summarize capacity, material, process route, efficiency or equipment-scope information from the supplied product material. Extra project advice stays in selection notes instead of becoming a published hard parameter.
5-100 m3/d
Capacity range for decentralized integrated wastewater treatment.
AO / MBR
Process route options covering standard biochemical and higher-configuration MBR systems.
Class 1A discharge
Effluent reference listed against the Class 1A discharge standard.
FRP / Q235 / 304
Material options for buried, cost-oriented or clean-process wastewater equipment.
COD 85-93%
COD removal range stated in the supplied wastewater treatment material.
BOD5 88-95%
BOD5 removal range stated in the supplied wastewater treatment material.
How the equipment fits into a treatment route
Treatment equipment is configured by process route, pollutant type, air or water volume, material requirement and installation condition. Monitoring or sampling interfaces are considered only when the project needs them.
Regulation and pretreatment section
This part is configured according to the selected model and actual site conditions.
Anaerobic / anoxic / aerobic biological treatment
This part is configured according to the selected model and actual site conditions.
Sedimentation and disinfection section
This part is configured according to the selected model and actual site conditions.
Optional MBR membrane module
This part is configured according to the selected model and actual site conditions.
Automatic electric control
This part is configured according to the selected model and actual site conditions.
Online monitoring point where required
This part is configured according to the selected model and actual site conditions.
Where this equipment is usually discussed
This equipment is discussed when the project needs monitoring or supporting treatment equipment matched with the actual site, medium, parameter and reporting requirement.
Used where discharge quality, treatment stability or final outlet trends need to be followed with clearer online data.
Discussed as supporting equipment when pollution control and monitoring requirements are reviewed in the same project.
Discussed as supporting equipment when pollution control and monitoring requirements are reviewed in the same project.
Discussed as supporting equipment when pollution control and monitoring requirements are reviewed in the same project.
Used where discharge quality, treatment stability or final outlet trends need to be followed with clearer online data.
Used where discharge quality, treatment stability or final outlet trends need to be followed with clearer online data.
