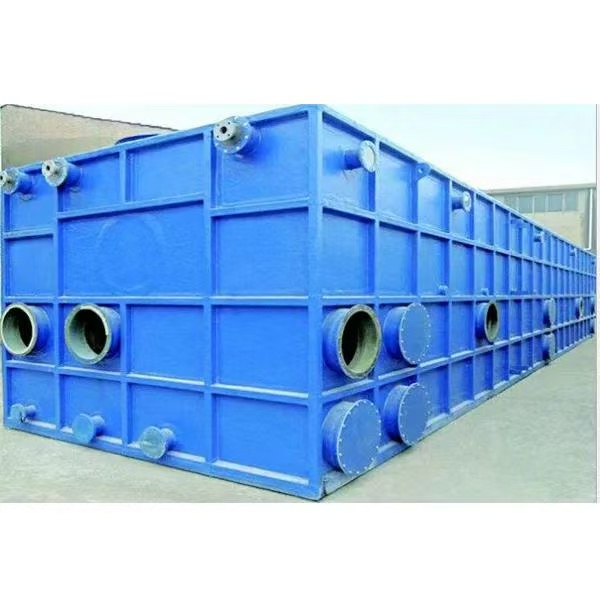

Biological Deodorization Equipment
Biofilter deodorization equipment using microbial degradation for H2S, NH3, mixed odor and low-concentration VOC treatment.
Biological Deodorization Equipment for pollution-control projects
Biological deodorization biofilter equipment for sewage plants, waste transfer stations, livestock farms, fertilizer plants and low-concentration odor / VOC treatment.
Biological deodorization equipment is discussed when the project needs low-cost odor control for sewage, waste, livestock, food, paper, leather or fermentation-related exhaust sources.
The document lists treatment air volume from 5000 to 100000 m3/h, deodorization efficiency 90-99%, H2S and ammonia removal >=95%, empty bed residence time around 15-30 seconds for H2S and 30-60 seconds for mixed VOC odor, and operating resistance around 50-200 Pa.
Equipment data from supplied material
This table keeps the equipment values, routes and material options stated in the supplied product material. Selection notes and related-product links elsewhere on the page are website guidance, not added hard specifications.
Supplied biological deodorization equipment standard parameter material. Final sizing still depends on site conditions, but the values in this table are kept to the supplied material.
| Item | Specification / selection note |
|---|---|
| Treatment air volume | 5000-100000 m3/h; customization supported |
| Deodorization efficiency | 90-99% listed in the document |
| H2S / ammonia removal | >=95% listed in the document |
| Empty bed residence time | H2S 15-30 s; mixed VOC odor 30-60 s |
| Operating resistance | 50-200 Pa |
| Temperature range | 10-45 deg C; best operating range 20-35 deg C |
| Applicable concentration | 5-1000 mg/m3 medium and low concentration odor gas |
| pH control | 6.0-8.0 with automatic spray humidification system |
Configured around the actual treatment route
The treatment route is confirmed from the supplied equipment material, then sized by air volume, water volume, pollutant type, material requirement and site layout.
Project-specific wastewater, exhaust gas or pollution control applications
Air volume, water volume, pollutant type, temperature, humidity, corrosion and inlet condition affect configuration.
Treatment body, fans, ducts, pumps, control cabinet, safety protection and maintenance access are reviewed by route.
Hard parameters are kept to supplied product material; final sizing is confirmed by project condition.
Selection notes kept separate from source parameters
Huisheng reviews the treatment route, handled medium, capacity, material, outlet target and auxiliary systems before confirming a configuration. Documented values remain in the technical data table, while project pairing and monitoring-interface notes are treated as selection guidance.
Hard values are kept to the supplied product material. Project-specific sizing is treated as selection work, not as a new published parameter.
Exhaust gas, dust, odor, flue gas polishing or wastewater condition should be confirmed before choosing the treatment route.
Air volume, water volume, pollutant load and outlet requirement determine final equipment sizing.
Q235, 304 stainless steel, FRP, PP or anti-corrosion options are selected according to the documented material scope and site condition.
Fans, ducts, pumps, control cabinets, safety protection and monitoring interfaces are discussed as configuration notes.
Parameters and scope stated in supplied material
The items below summarize capacity, material, process route, efficiency or equipment-scope information from the supplied product material. Extra project advice stays in selection notes instead of becoming a published hard parameter.
5000-100000 m3/h
Biofilter air-volume range for odor-control projects.
90-99% odor removal
Deodorization efficiency range listed in the supplied biofilter material.
H2S / NH3 >=95%
Hydrogen sulfide and ammonia removal target stated in the biofilter material.
50-200 Pa
Low operating resistance range for biological deodorization equipment.
FRP / 304 / Q235
Material options selected by corrosion level and cleanliness requirement.
Biofilter
Biological deodorization route for medium- and low-concentration odor gas using microbial degradation.
How the equipment fits into a treatment route
Treatment equipment is configured by process route, pollutant type, air or water volume, material requirement and installation condition. Monitoring or sampling interfaces are considered only when the project needs them.
Pretreatment humidification section
Pretreatment protects the analyzer and helps keep measurement conditions stable.
Biological packing layer
This part is configured according to the selected model and actual site conditions.
Automatic spray humidification system
This part is configured according to the selected model and actual site conditions.
Circulating water tank and drain valve
This part is configured according to the selected model and actual site conditions.
PLC automatic control cabinet
This part is configured according to the selected model and actual site conditions.

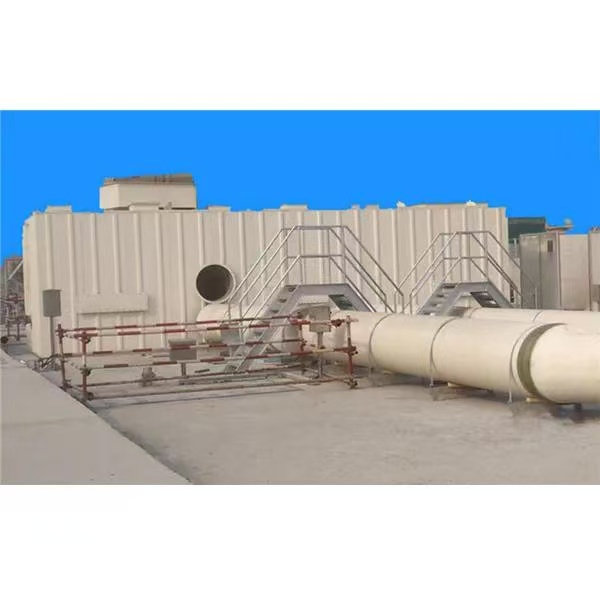

Access doors, platform and anti-corrosion ducting
This part is configured according to the selected model and actual site conditions.
