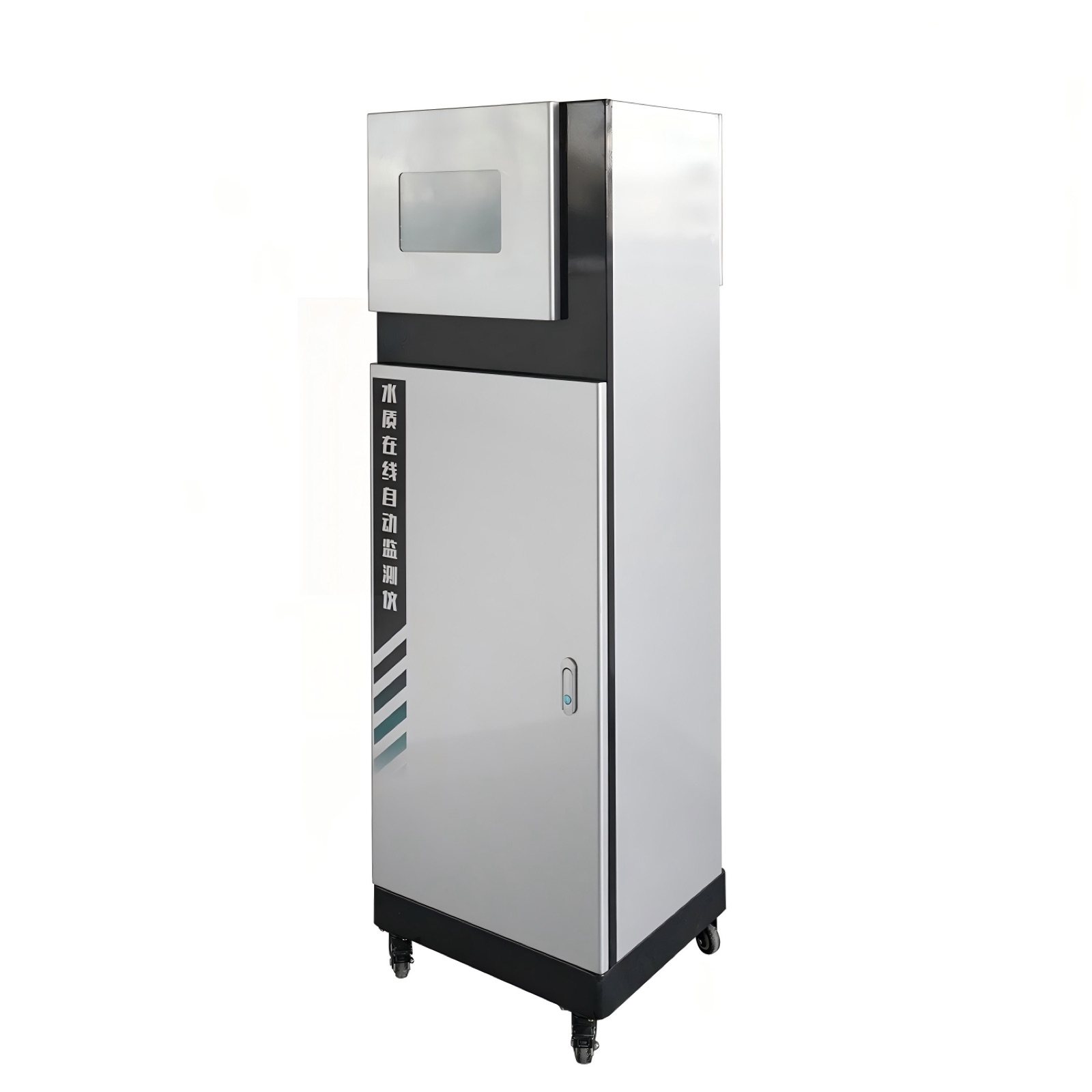

Total Phosphorus Online Analyzer
AG-TP07 TP online analyzer for nutrient monitoring and phosphorus discharge control.
Total Phosphorus Online Analyzer for environmental monitoring projects
AG-TP07 total phosphorus online water quality analyzer for wastewater discharge and nutrient monitoring applications.
AG-TP07 is selected when phosphorus discharge, eutrophication control or nutrient removal performance needs online monitoring data.
AG-TP07 supports online total phosphorus monitoring with a 0-50 mg/L configurable range. Selection should be discussed according to sample condition, phosphorus concentration, reagent method and installation environment.
Technical data for model selection
Review the main measuring range, output interface, operating conditions and configuration notes before quotation.
Huisheng confirms the final model, range and site configuration according to sample condition and monitoring requirement.
| Item | Specification / selection note |
|---|---|
| Model | AG-TP07 total phosphorus online water quality analyzer |
| Measuring range | 0-50 mg/L; range can be configured |
| Indication error | +/-3% |
| Repeatability | <=2% |
| 24h low-concentration drift | <0.01 mg/L |
| 24h high-concentration drift | <=1% |
| Output interface | RS232, RS485 and 4-20mA |
| Function notes | Multiple measuring ranges, automatic switching and remote monitoring support are available |
Configured around the actual monitoring point
Nutrient analysis normally requires sampling, reaction or digestion and controlled measurement.
Wastewater, surface water, process water or water network points
Temperature, moisture, dust, solids, corrosive components or compound type may affect configuration.
Analyzer, detector, sampler, cabinet, pretreatment and data output can be combined as one product package.
Specifications are prepared according to the selected model and actual project requirement.
Details Huisheng reviews before confirming a model
Huisheng reviews the product model together with the measured medium, target range, sampling condition, installation position and required specifications. This keeps the product discussion tied to the real monitoring point.
Expected concentration or detection level helps determine the model and measurement method.
Temperature, moisture, suspended solids, dust, corrosion or target compound behavior may change the configuration.
Nutrient analysis normally requires sampling, reaction or digestion and controlled measurement.
Indoor cabinet, outdoor station, shelter or process-side installation depending on site
Communication output, alarm logic and model-specific specifications depend on the selected model.
Monitoring indicators covered by this product series
The final parameter package depends on the selected model, measuring range, sample condition and data output requirement. For many projects, one instrument is part of a complete monitoring point rather than a stand-alone purchase.
AG-TP07
Total phosphorus monitoring item used for nutrient discharge, eutrophication control and wastewater treatment review.
Total phosphorus
Total phosphorus monitoring item used for nutrient discharge, eutrophication control and wastewater treatment review.
0-50 mg/L configurable
Total phosphorus monitoring item used for nutrient discharge, eutrophication control and wastewater treatment review.
Nutrient monitoring
Total phosphorus monitoring item used for nutrient discharge, eutrophication control and wastewater treatment review.
Automatic range switching
Total phosphorus monitoring item used for nutrient discharge, eutrophication control and wastewater treatment review.
Wastewater / surface water
This item is confirmed by the selected model, measuring range, sample condition and site requirement.
How the product fits into a complete monitoring chain
Most projects connect the product with sample access, conditioning, measurement, data acquisition and reporting. The exact arrangement depends on the site and selected model.
Representative water sample intake
This part is configured according to the selected model and actual site conditions.
Sample pretreatment or settling
The sample access point determines whether filtration, heating, flow control or preservation is required.
Digestion / reagent reaction module
This part is configured according to the selected model and actual site conditions.

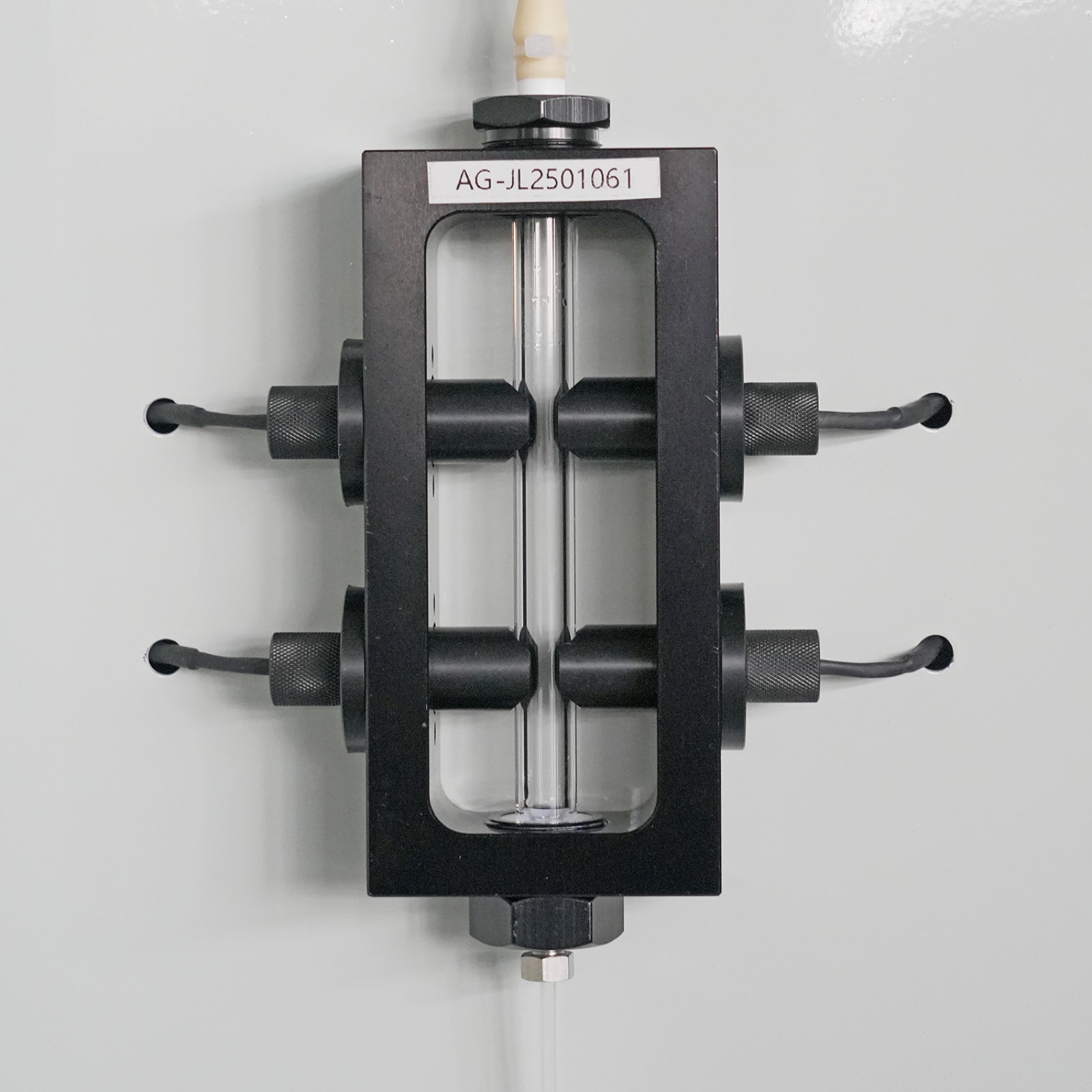

Colorimetric TP detection
This part is configured according to the selected model and actual site conditions.
Data output and alarm section
Data acquisition, alarm output and communication must match the project platform or reporting requirement.
Where this equipment is usually discussed
Water monitoring applications are selected by monitoring point first: discharge outlet, treatment process, river station, water network or industrial process water. The instrument scope then follows the parameter group, sample condition and cabinet arrangement.
Used where discharge quality, treatment stability or final outlet trends need to be followed with clearer online data.
Used where discharge quality, treatment stability or final outlet trends need to be followed with clearer online data.
Suitable for distributed water points where physical, nutrient or chemical indicators need continuous observation.
Suitable for distributed water points where physical, nutrient or chemical indicators need continuous observation.
Used where discharge quality, treatment stability or final outlet trends need to be followed with clearer online data.
